CONSTRUCTION AND APPLICATION

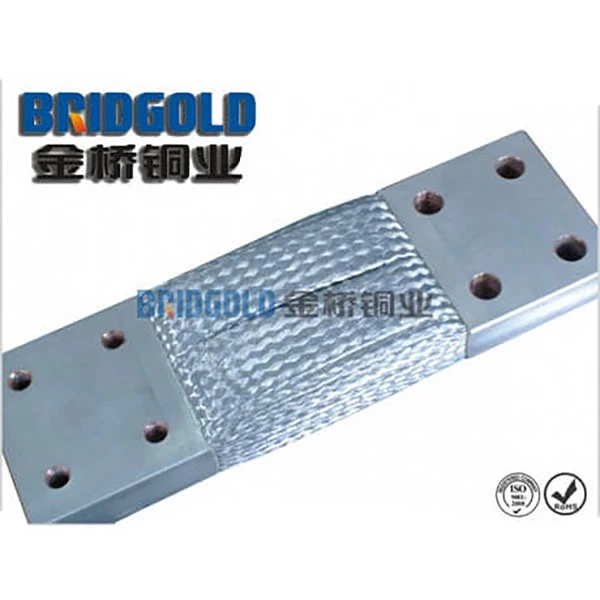

The flexible copper braided connectors are made of flexible copper braids with solderless pressed ferrules at each side as contact areas.
The flexible copper braids consist of Cu-ETP wires which are braided according to standard GB/T6313.2-1992.
TECHNICAL DATA
Material: annealed Cu-ETP wires, C11000, copper content ≥ 99.95%
Finish: bare, tin plating, nickel plating, silver plating
Single Wire Diameter:
- 0.05mm (AWG 44)
- 0.07mm (AWG 41)
- 0.10mm (AWG 38)
- 0.12mm
- 0.127mm (AWG 36)
- 0.15mm (standard)
- 0.20mm (AWG 32)
- 0.25mm
- 0.254mm (AWG 30)
Cross Sectional Area: 1.5mm2 - 6000mm2
When you place an order, please specify:
- Cross sectional area
- Length (L)
- Ferrule Type & Hole Type
- Hole Diameter (d)
- Single Wire Diameter （default 0.15mm）
MODEL AND MEANING
Customization Upon Request
| Part No. | Cross Section (mm2) | W/W1 Approx. (mm) | Thickness Approx. (mm) | L (mm) | d (mm) |
| BGTZ(X)-1400/L/d/Aa | 1400 | 100 | 24.0 | According to your request | According to your request |
| 120 | 21.0 | ||||
| 150 | 20.0 | ||||
| 200 | 13.5 | ||||
| BGTZ(X)-1500/L/d/Aa | 1500 | 100 | 24.5 | ||
| 120 | 22.2 | ||||
| 150 | 21.0 | ||||
| 200 | 14.0 | ||||
| BGTZ(X)-1600/L/d/Aa | 1600 | 120 | 23.5 | ||
| 150 | 22.0 | ||||
| 200 | 14.5 | ||||
| BGTZ(X)-1800/L/d/Aa | 1800 | 120 | 27.5 | ||
| 150 | 24.0 | ||||
| 200 | 16.0 | ||||
| BGTZ(X)-2000/L/d/Aa | 2000 | 120 | 31.0 | ||
| 150 | 26.0 | ||||
| 200 | 17.5 | ||||
| BGTZ(X)-2500/L/d/Aa | 2500 | 120 | 38.5 | ||
| 150 | 35.0 | ||||
| 200 | 23.0 | ||||
| BGTZ(X)-3000/L/d/Aa | 3000 | 120 | 46.0 | ||
| 150 | 38.5 | ||||
| 200 | 24.0 |
