CONSTRUCTION AND APPLICATION

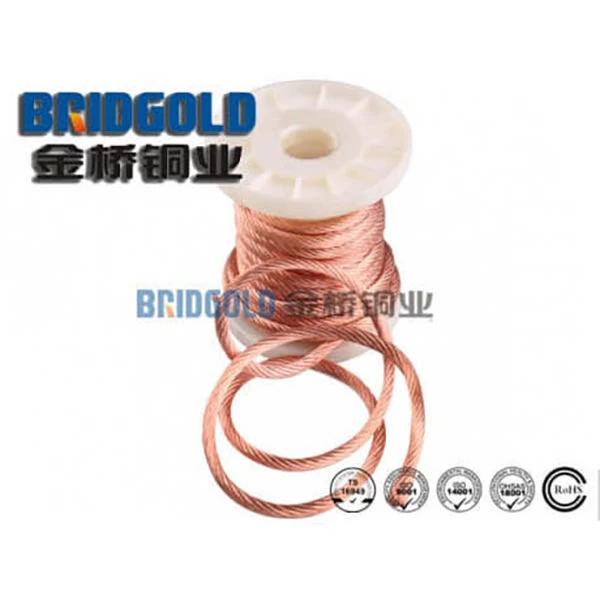

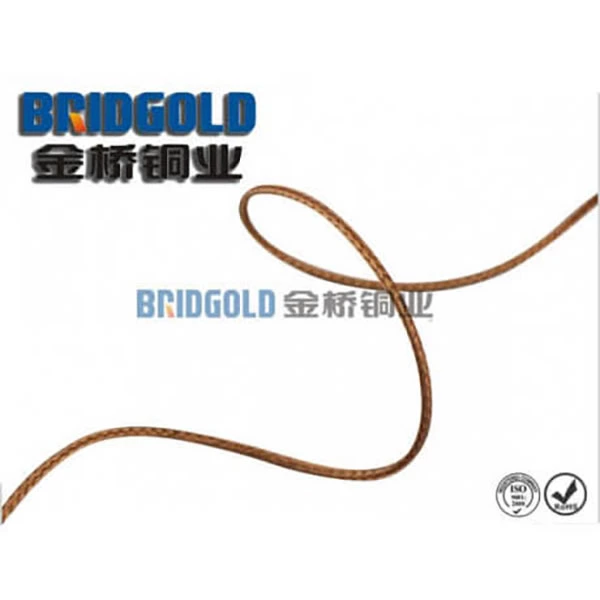

BGTS(X) and BGTSR type flexible copper stranded wires for electric brush consists of annealed highly flexible Cu-ETP copper wires, and can be used for flexible connection of motor, electrical apparatus and instrument wiring, specially for AC current or high-frequency current.
Standard: GB/T12970.4-2009.
TECHNICAL DATA
- Material: annealed Cu-ETP wires, C11000, copper content ≥ 99.95%
- Finish: bare, tin plating
- Packing Modes: in rolls, on spools or wooden drums
TYPE AND SPECIFICATION
| Type | Single Wire Diameter | Elongation, not less than |
| BGTS | 0.10mm (AWG38 ), 0.12mm | 18% |
| BGTSX | 0.10mm (AWG38 ), 0.12mm | 15% |
| BGTSR | 0.05mm (AWG44), 0.07mm(AWG41) | 15% |
Customization Upon Request
Round Type: Single Wire Diameter: 0.07mm(AWG41)
| Part No. | Nominal Cross Section (mm2) | Calculating Cross Section (mm2) | Structure | Calculating Outside diameter (mm) | Max. DC Resistance at 20℃ Ω/km |
Calculating weight(kg/km) | ||
| Total Wire Number | Strands×Wire Number Per Strand/Single Wire Diameter (mm) | BGTSR | BGTSRX | |||||
| BGTSR(X)-2 | 2 | 1.93 | 504 | 7×72/0.07 | 2.2 | 9.16 | 9.65 | 18.3 |
| 1.93 | 504 | 7×3×24/0.07 | 2.2 | 9.16 | 9.65 | 18.6 | ||
| BGTSR(X)-3.5 | 3.5 | 3.47 | 903 | 7×3×43/0.07 | 2.7 | 5.35 | 5.51 | 33.3 |
| BGTSR(X)-4 | 4 | 4.01 | 1044 | 12×3×29/0.07 | 2.9 | 4.59 | 4.83 | 39.0 |
| 4.03 | 1050 | 7×3×50/0.07 | 3.0 | 4.59 | 4.83 | 39.0 | ||
| BGTSR(X)-5 | 5 | 4.84 | 1260 | 7×3×60/0.07 | 3.2 | 3.71 | 3.86 | 46.5 |
| 5.02 | 1305 | 15×3×29/0.07 | 3.2 | 3.71 | 3.86 | 48.5 | ||
| BGTSR(X)-6 | 6 | 5.65 | 1470 | 7×3×70/0.07 | 3.6 | 2.93 | 3.21 | 54.2 |
| BGTSR(X)-8 | 8 | 7.75 | 2016 | 12×3×56/0.07 | 4.2 | 2.33 | 2.44 | 73.0 |
| BGTSR(X)-10 | 10 | 9.69 | 2520 | 12×3×70/0.07 | 4.8 | 1.83 | 1.91 | 90.5 |
| BGTSR(X)-12 | 12 | 11.90 | 3096 | 12×3×86/0.07 | 5.4 | 1.50 | 1.60 | 112.2 |
| BGTSR(X)-16 | 16 | 15.34 | 3990 | 19×3×70/0.07 | 6.2 | 1.16 | 1.21 | 150.5 |
Round Type: Single Wire Diameter: 0.05mm (AWG 44)
| Part No. | Nominal Cross Section (mm2) | Calculating Cross Section (mm2) | Structure | Calculating Outside diameter (mm) | Max. DC Resistance at 20℃ Ω/km |
Calculating weight(kg/km) | ||
| Total Wire Number | Strands×Wire Number Per Strand/Single Wire Diameter (mm) | BGTSR | BGTSRX | |||||
| BGTSR(X)-1 | 1 | 0.99 | 504 | 7×3×24/0.05 | 1.4 | 18.5 | 19.3 | 9.3 |
| BGTSR(X)-1.3 | 1.3 | 1.32 | 672 | 7×3×32/0.05 | 1.7 | 14.2 | 14.8 | 12.5 |
| BGTSR(X)-1.5 | 1.5 | 1.48 | 756 | 7×3×36/0.05 | 1.8 | 11.9 | 12.7 | 14.0 |
| BGTSR(X)-1.8 | 1.8 | 1.81 | 924 | 7×3×44/0.05 | 2.0 | 10.2 | 10.7 | 17.5 |
| BGTSR(X)-2 | 2 | 1.98 | 1008 | 7×3×48/0.05 | 2.2 | 9.16 | 9.65 | 19.0 |
| BGTSR(X)-2.5 | 2.5 | 2.30 | 1176 | 7×3×56/0.05 | 2.3 | 7.39 | 7.72 | 22.5 |
| BGTSR(X)-3 | 3 | 2.95 | 1505 | 7×5×43/0.05 | 2.6 | 6.16 | 6.43 | 29.0 |
| BGTSR(X)-4 | 4 | 3.95 | 2016 | 12×3×56/0.05 | 2.7 | 4.59 | 4.83 | 39.0 |
| BGTSR(X)-5 | 5 | 4.94 | 2520 | 15×3×56/0.05 | 3.2 | 3.71 | 3.86 | 48.5 |
| BGTSR(X)-6 | 6 | 6.26 | 3192 | 19×3×56/0.05 | 3.6 | 2.93 | 3.21 | 60.0 |
| BGTSR(X)-8 | 8 | 8.05 | 4104 | 19×3×72/0.05 | 4.2 | 2.33 | 2.44 | 78.5 |
| BGTSR(X)-10 | 10 | 10.00 | 5096 | 7×7×104/0.05 | 4.8 | 1.83 | 1.91 | 97.0 |
| 10.07 | 5130 | 19×3×90/0.05 | 4.8 | 1.83 | 1.91 | 97.8 | ||
| BGTSR(X)-12 | 12 | 12.08 | 6156 | 19×3×108/0.05 | 5.4 | 1.50 | 1.60 | 117.0 |
