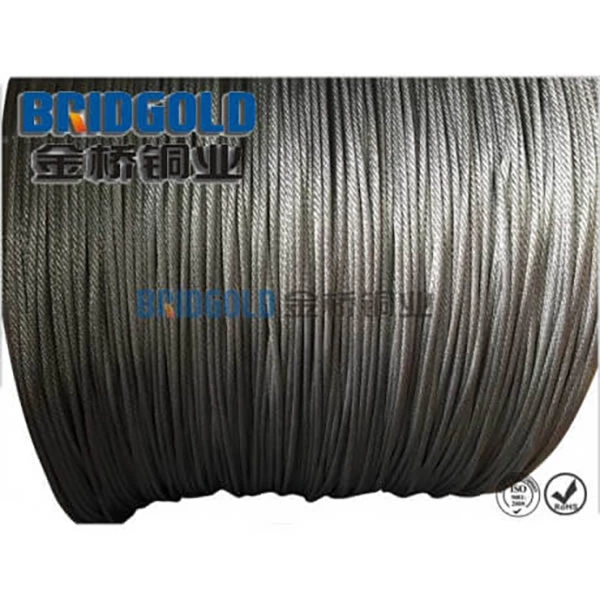

CONSTRUCTION AND APPLICATION
BGTJR(X) type flexible copper stranded wires can be used for flexible conduction and grounding connection of electrical installation, switch gear, electrical furnace, storage battery, etc.
BGTJR(X) flexible stranded copper wires consist of Cu-ETP wires which are stranded according to standard GB/T12970.2-2009.
TECHNICAL DATA
- Material: annealed Cu-ETP wires, C11000, copper content ≥ 99.95%
- Finish: bare, tin plating
- Cross Sectional Area: 1.5mm2 - 2000mm2
- Packing Modes: in rolls, on spools or wooden drums
TYPE AND SPECIFICATION
| Type | Single Wire Diameter (mm) | Single Wire Diameter (AWG) |
| BGTJR 1 | 0.25mm-1.05mm | AWG30-AWG18 |
| BGTJR(X) 2 | 0.20mm | AWG32 |
| BGTJR(X) 3 | 0.15mm | - |

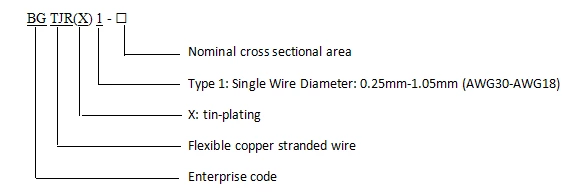

MODEL AND MEANING
Customization Upon Request
| Part No. | Nominal Cross Section (mm2) | Calculating Cross Section (mm2) | Structure | Calculating Outside diameter (mm) | Max. DC Resistance at 20℃ Ω/km BGTJR 1 |
Calculating weight(kg/km) | |
| Total Wire Number | Strands×Wire Number Per Strand/Single Wire Diameter (mm) | ||||||
| BGTJR(X) 1-1.6 | 1.60 | 1.57 | 32 | 32/0.25 | 1.63 | 11.5 | 14.7 |
| BGTJR(X) 1-2 | 2.00 | 1.96 | 40 | 40/0.25 | 1.82 | 9.24 | 18.3 |
| BGTJR(X) 1-2.5 | 2.5 | 2.41 | 49 | 7×7/0.25 | 2.25 | 7.58 | 22.7 |
| BGTJR 1-4 | 4.0 | 3.94 | 49 | 7×7/0.32 | 2.88 | 4.64 | 37.1 |
| BGTJR 1-6.3 | 6.3 | 6.16 | 49 | 7×7/0.40 | 3.60 | 2.97 | 58.0 |
| BGTJR 1-10 | 10 | 10.01 | 49 | 7×7/0.51 | 4.59 | 1.83 | 94.3 |
| BGTJR 1-16 | 16 | 15.84 | 84 | 7×12/0.49 | 6.17 | 1.16 | 150 |
| BGTJR 1-25 | 25 | 25.08 | 133 | 19×7/0.49 | 7.35 | 0.736 | 239 |
| BGTJR 1-35 | 35 | 35.14 | 133 | 19×7/0.58 | 8.70 | 0.525 | 334 |
| BGTJR 1-40 | 40 | 40.15 | 133 | 19×7/0.62 | 9.30 | 0.459 | 382 |
| BGTJR 1-50 | 50 | 48.30 | 133 | 19×7/0.68 | 10.20 | 0.382 | 459 |
| BGTJR 1-63 | 63 | 62.72 | 189 | 27×7/0.65 | 12.00 | 0.294 | 597 |
| BGTJR 1-70 | 70 | 68.64 | 189 | 27×7/0.68 | 12.53 | 0.269 | 653 |
| BGTJR 1-80 | 80 | 78.20 | 259 | 37×7/0.62 | 13.02 | 0.236 | 744 |
| BGTJR 1-95 | 95 | 94.06 | 259 | 37×7/0.68 | 14.28 | 0.196 | 895 |
| BGTJR 1-100 | 100 | 99.68 | 259 | 37×7/0.70 | 14.70 | 0.185 | 948 |
| BGTJR 1-120 | 120 | 117.67 | 324 | 27×12/0.68 | 17.39 | 0.157 | 1119 |
| BGTJR 1-125 | 125 | 124.69 | 324 | 27×12/0.70 | 17.90 | 0.148 | 1186 |
| BGTJR 1-160 | 160 | 162.86 | 324 | 27×12/0.80 | 20.20 | 0.113 | 1549 |
| BGTJR 1-185 | 185 | 183.85 | 324 | 27×12/0.85 | 21.74 | 0.100 | 1749 |
| BGTJR 1-200 | 200 | 196.15 | 444 | 37×12/0.75 | 21.80 | 0.0940 | 1866 |
| BGTJR 1-250 | 250 | 251.95 | 444 | 37×12/0.85 | 24.72 | 0.0732 | 2397 |
| BGTJR 1-315 | 315 | 310.58 | 703 | 37×19/0.75 | 26.25 | 0.0596 | 2954 |
| BGTJR 1-400 | 400 | 398.92 | 703 | 37×19/0.85 | 29.75 | 0.0462 | 3795 |
| BGTJR 1-500 | 500 | 498.30 | 703 | 37×19/0.95 | 33.25 | 0.0370 | 4740 |
| BGTJR 1-630 | 630 | 627.1 | 1159 | 61×19/0.83 | 37.35 | 0.0294 | 5965 |
| BGTJR 1-800 | 800 | 804.3 | 1159 | 61×19/0.94 | 42.30 | 0.0229 | 7651 |
| BGTJR 1-1000 | 1000 | 1003.6 | 1159 | 61×19/1.05 | 47.25 | 0.0184 | 9547 |
