CONSTRUCTION AND APPLICATION

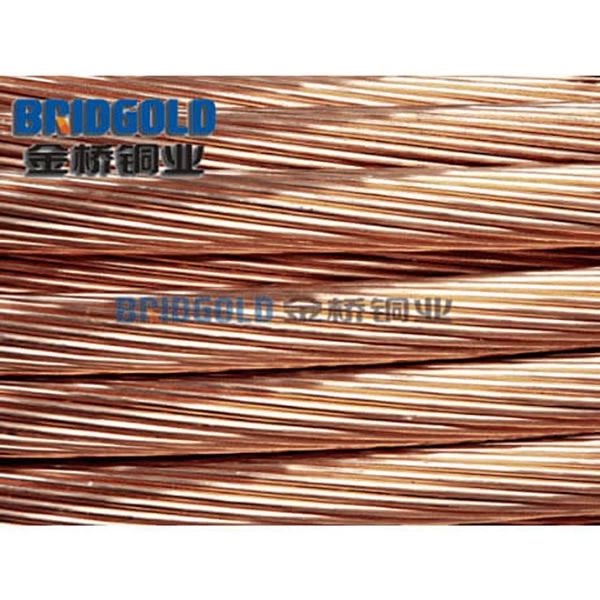

BGJT(X) type hard drawn copper stranded wires consists of copper wires with larger diameter and stronger breaking load, and are used as electrical conductor.
Standard: TB/T3111-2005.
TECHNICAL DATA
- Material: annealed Cu-ETP wires, C11000, copper content ≥ 99.95%
- Finish: bare, tin plating
- Single Wire Diameter: 1.70mm - 2.85mm
- Cross Sectional Area: 16mm2 - 400mm2
- Packing Modes: in rolls, on spools or wooden drums

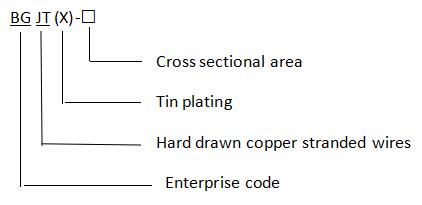

MODEL AND MEANING
Customization Upon Request
